Ammonia controlS

System Controls & Safety Interlocks

Typical Electronic Package for Anhydrous Ammonia Vaporizer Skid

  • Electronic package includes a control panel with PLC, starters, relays and local display of pressure, temperature and level.
  • Package also includes a 0 to 400 psi pressure transducer assembly with isolation valve and 4 to 20 mA output, an electronic (radar) level gauge with 4 to 20 mA output and a 0° to 300° F temperature transducer with 4 to 20 mA output.
  • This option allows the customer to monitor the pressure, temperature and level, locally or remotely.
  • All items are pre-wired in a locally mounted NEMA 4X display panel.
  • All equipment is tested and proven suitable for anhydrous ammonia service.
  • ​Can meet specific area classification upon request.

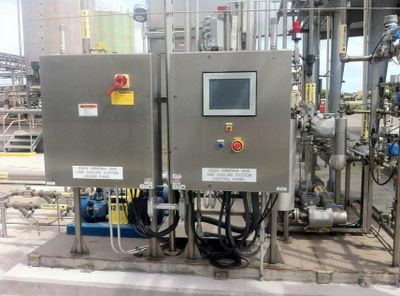

Control Panel for Ammonia System
Control Panel for Ammonia System
